Model:LUGB
We can provide OEM service
E-mail: pearls@judongkj.cn

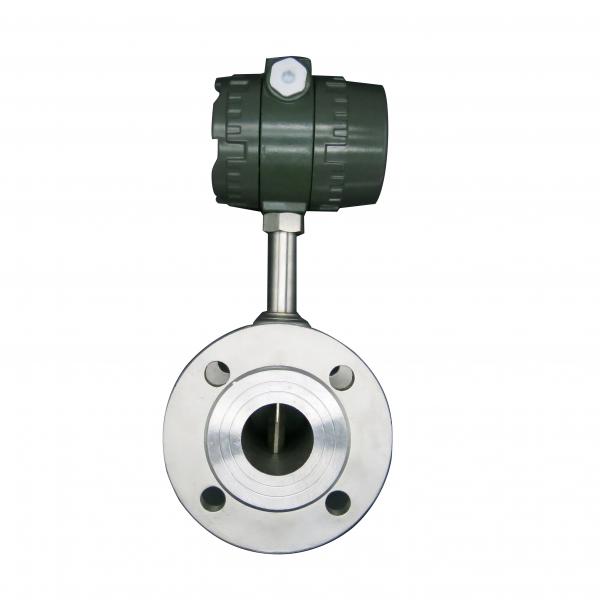

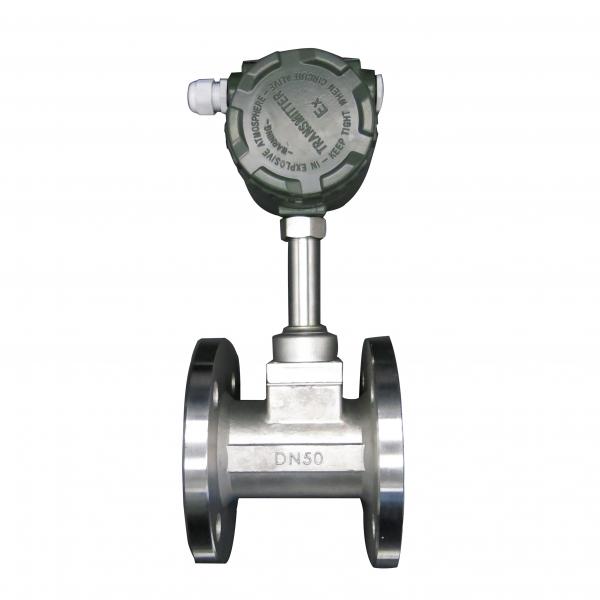

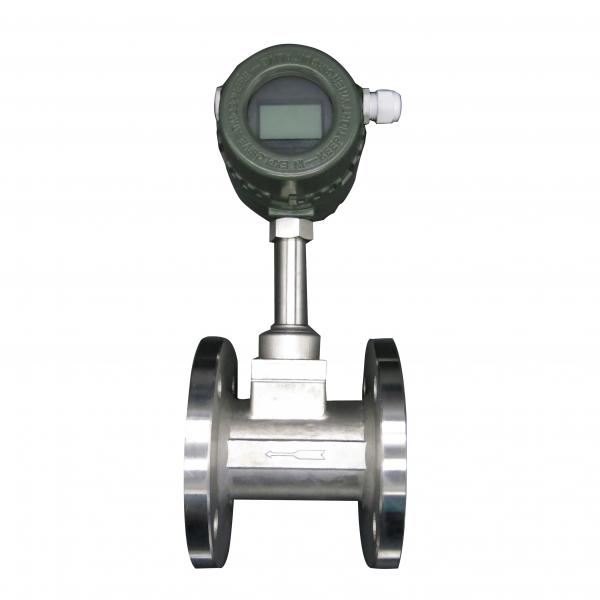

Product description：The vortex flow meter is used for measuring the flow velocity of gases or liquids in pipelines flowing full. The measuring principle is based on the development of a Karman vortex shedding street in the wake of a body built into the pipeline The periodic shedding of eddies occurs first from one side and then from the other side of a bluff body (vortex-shedding body) installed perpendicular to the pipe axis. Vortex shedding generates a so-called "Karman vortex street" with alternating pressure conditions whose frequency is proportional to the flow velocity.
Product features
Technical details
|
Application |
Liquid、Gas、Steam. |
|
Operation mode |
It can be measured liquid level and pressure. Gauge pressure, absolute pressure, sealing pressure |
|
Working Temperature |
-40℃~+250℃、300℃、400℃、450℃ |
|
Pressure |
1.6MPa 2.5MPa 4.0MPa |
|
Accuracy |
±0.5%、±1.0%、±1.5% |
|
Range of Flow Speed |
Liquid: 0.3~7.0m/s、 Gas: 4.0~60.0m/s Steam:5.0~70.0m/s |
|
Pipe diameter |
15mm ~ 1500mm |
|
Output signal |
4～20mA,Pulse,Hart protocol,RS485 |
|
Environmental Temp. |
20～80℃ |
|
Shell material |
SUS304, SUS316L Stainless steel,carbon steel. |
|
Process connection |
Tri-Clamp、Threaded connection、Flange connection. |
|
Protection grade |
IP65 |
Application
Selection considerations
