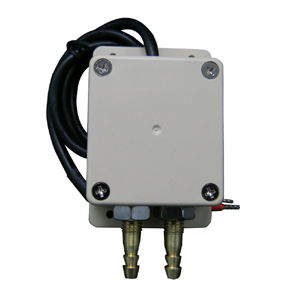

Model:JDYD-01
We can provide OEM service
E-mail: pearls@judongkj.cn
Product description：
Micro differential pressure sensor adopts imported high precision and high stability micro pressure chip. It is processed by strict precision temperature compensation, linear compensation, signal amplification, V/I conversion, reverse polarity protection, pressure overload, current limiting and so on. Widely used in petroleum, chemical, metallurgy, electric power, textile, electronics, medicine, food, non corrosive gases are very small in the production process of differential pressure, environmental protection and other fields of flow, pressure and reliable control, is the ideal product of ultra clean plant and boiler automatic detection.
Download:JDYD Micro Pressure Transmitter Data
Product features
1.Minimum measuring range -200pa.
2.Maximum measuring range 0-100kpa.
Technical details
|
Measuring medium or Application |
Liquid,gas or steam etc. |
|
Installation mode |
1. Measuring pressure installation: water tank, pipe, other equipment at any position. |
|
Display mode |
Can be selected display type and without display type. |
|
Range |
-200pa-+200pa -1000pa.....100kpa |
|
Power supply |
24VDC |
|
Accuracy |
0.25%F.S |
|
Output signal |
4～20mA,0-5V,1-10V,1-5V protocol |
|
Working Temp. |
-25～80℃ high temperature can be customized
|
|
Environmental Temp. |
-20～80℃ |
|
Diaphragm material |
316L SUS |
|
Process connection |
M10 * 1, φ6 pagoda mouth |
|
Protection grade |
IP65 |
|
weight |
0.25kg |
Application
Selection considerations
